Ground floor

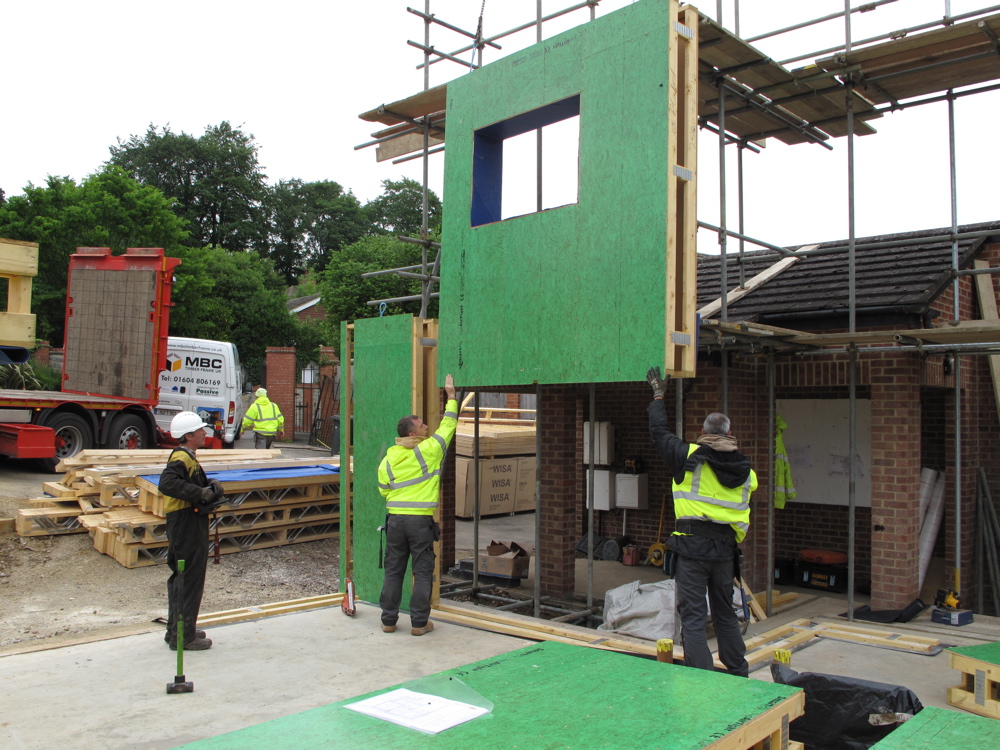

Ground floor wall panels

Ground floor wall panels

Crane lifting panels

Crane lifting panels

Fixing steel post

Fixing steel post

Ground floor wall panels

Ground floor wall panels

Fixing base of corner post

Fixing base of corner post

Fixing ground floor beams

Fixing ground steel floor beams

Ground floor beams ready to start fixing joists

Ground floor steel beams ready to start fixing joists

Floor joists

Floor joists over ground floor panels

The floor joists have an open metal web with a timber top and bottom. This makes it really easy to run services such as mvhr duct, wiring and plumbing in the ground floor ceiling void.

Metal web joists over living space

Metal web joist detail

Air tight membrane over joist ends

The guys at MBC started fitting airtight membrane and tape right from the start of the frame erection as this is the only way to get a really airtight house. It is too late to try and block up holes and cranks once the frame as been erected, which is the method used by most builders. Before the joists were fitted an airtight membrane was taped to the top of the ground floor walls and wrapped over the end of the joists to be taped to the inside of the first floor walls.

Steel junction

Steel beam junction

One of the critical elements of a passive house is not to have thermal bridging of the insulated layer. All steel work is kept to the inside leaf of the frame, allowing good coverage of insulation around steel and keeping it on the warm side of the build.

First floor

First floor panels

First floor wall panels

Lifting first floor steels

Lifting first floor steels

Roof

Crane lifting roof truss

Roof trusses being lifted

Fixing roof trusses

Roof trusses being installed

Roof topped out

Roof topped out
